Architecture

Post-installation, you will discover a /Assets/Yumon Template Lite folder with a Sample Scene folder containing everything you need to get started, and a Script folder that houses essential public and internal scripts for the game loop.

The Sample Scene implement a basic UI with canvases for each state of the game loop and buttons to test it. You can play the scene and explore the components to see the game loop in action.

We recommend you to start with this scene and plug your core gameplay into it. Your objective is to make your core gameplay work within the game loop structure and events provided by the Lite Template, so that it will be easy to transfert into the full template by the Yumon team.

Explanation of the game loop structure and events

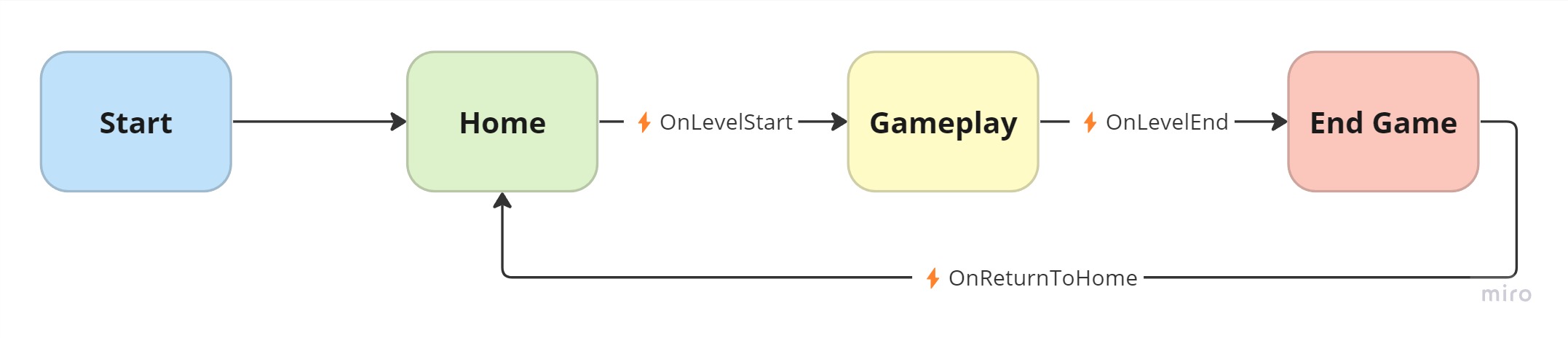

Here is a diagram of the game loop, the public events you will subscribe to are on the edges between the states:

1. When the game starts, the Game State is initialized to Home
2. When the OnLevelStart event fires, the Game State is set to Gameplay
3. When the OnLevelEnd event fires, the Game State is set to End Game
4. When the OnReturnToHome event fires, the Game State is set to Home
   1. ⚠️ there is no reload of the scene
   2. 🔁 The loop restarts from here

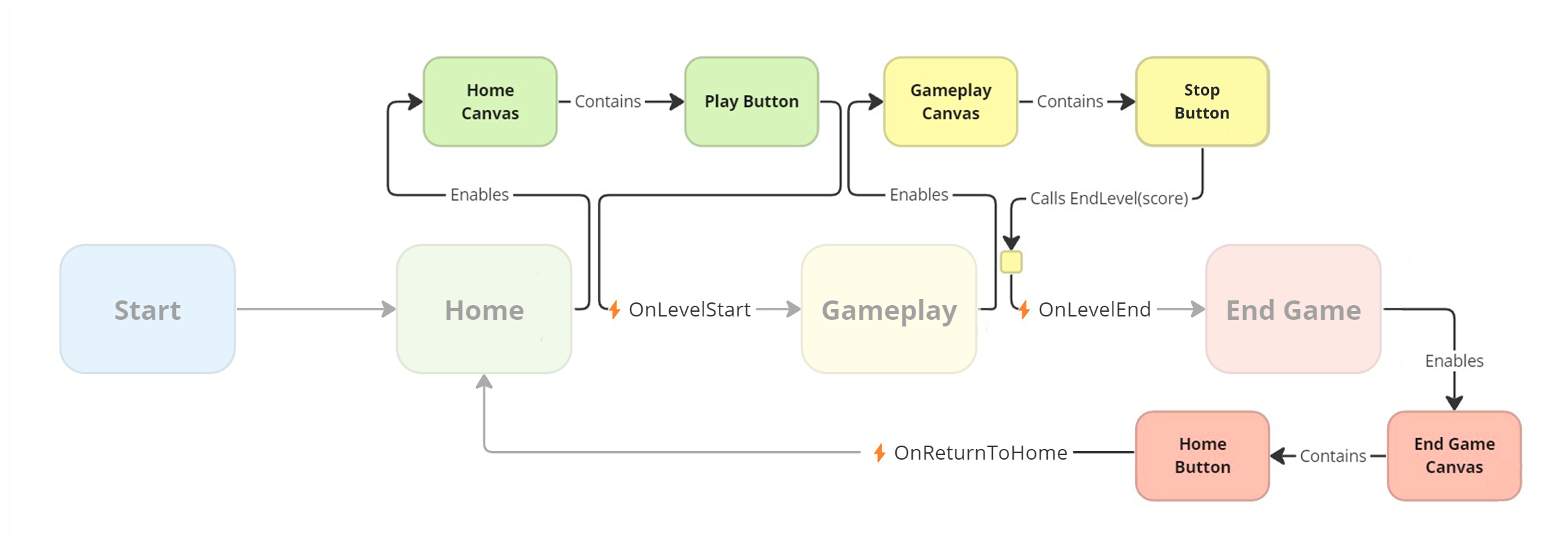

The Sample Scene implements this game loop for you, here is what has been added:

1. Entering Home State enables the Home Canvas
2. Clicking the Play Button raises the OnLevelStart event
   1. Entering Gameplay State enables the Gameplay Canvas
3. Clicking the End Button calls the EndLevel() method that raises the OnLevelEnd event
   1. Entering End Game State enables the End Game Canvas
4. The Home Button raises the OnReturnToHome event

Notes about End Button and EndLevel() method:

• This End Button is way to provide a quick example for calling EndLevel(), you will call EndLevel() by your gameplay scripts instead
• In the full template it will also send the score in the leaderboard, but not here
